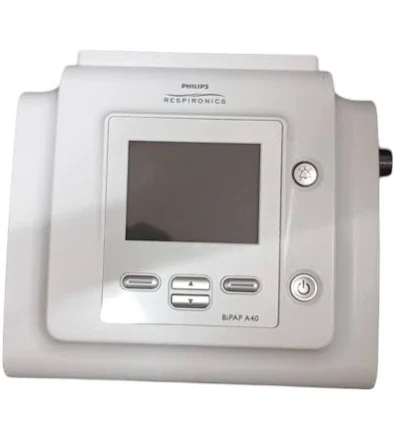

Philips A40 BiPAP Machine

Brand: PHILIPS

Condition : New

Original price was: ₹225,000.00.Current price is: ₹199,999.00.

Add to cart

Buy Now

Description

The

BiPAP A40

offers various ventilation modes, including CPAP, S, T, S/T, PC, AVAPS, and the automatic AVAPS-AE, which adjusts EPAP and pressure support to maintain airway patency and target tidal volume. It utilizes Auto-Trak technology for improved leak compensation and patient comfort. The device provides a pressure range up to 40 cmH₂O. It features an integrated heated humidifier with “Dry Box” technology to minimize water ingress. The

A40

is portable (around 2.1 kg) and can be fitted with an optional internal battery offering approximately 5 hours of backup power. It stores therapy data internally and on an SD card, supporting detailed analysis with DirectView and EncorePro software. The device operates quietly, with a noise level below 30 dBA, and is compatible with an optional oximetry module for viewing SpO₂ and heart rate data.

Intended Use

The

Philips Respironics BiPAP A40

is intended for adult and pediatric patients (above 10 kg) requiring bi-level positive airway pressure therapy. It is primarily used for conditions such as:

Obstructive Sleep Apnea (OSA)
Chronic Obstructive Pulmonary Disease (COPD)
Chronic respiratory insufficiency
Neuromuscular diseases

Features

Parameter	Details
Ventilation Modes	CPAP, S, S/T, PC, T, AVAPS, AVAPS-AE
IPAP Pressure Range	4 to 40 cm H₂O
EPAP Pressure Range	4 to 25 cm H₂O
CPAP Pressure Range	4 to 20 cm H₂O
Target Tidal Volume	200 to 1500 mL (with AVAPS/AVAPS-AE)
Breath Rate	0 to 40 BPM
Inspiratory Time	0.5 to 3 seconds
Ramp Time	0 to 45 minutes
Weight	Approximately 2.1 kg (4.4 lbs)
Noise Level	Less than 30 dB at 10 cm H₂O
Dimensions (H x W x L)	10.8 x 18.4 x 22.2 cm (approx. 4.25″ x 7.25″ x 8.75″)
AC Power Source	100 to 240 VAC, 50/60 Hz
DC Power Source	12 VDC, 5.0 A (external battery) or 24 VDC, 4.2 A (power supply)
Battery Backup	Provides up to 5-9 hours of backup power (with a specifically designed battery module)

Key Features

Integrated Humidifier: Features the System One humidity control and “Dry Box” technology to reduce dryness and prevent water ingress.
Advanced Algorithms: Utilizes the clinically proven Auto-Trak algorithm for enhanced leak compensation and patient-device synchronization, and AVAPS (Average Volume Assured Pressure Support) and AVAPS-AE for automatically adjusting pressure support to maintain a target tidal volume.
Data Management: Supports efficient data tracking via an internal memory and SD card, compatible with EncorePro and DirectView software for detailed analysis by healthcare providers.
Monitoring: Compatible with an optional oximetry module to display SpO₂ and heart rate data directly on the screen alongside ventilation parameters.
Alarms: Includes a range of alarms for patient safety, such as patient disconnection, apnea, low minute ventilation, and power failure.
Portability: Designed to be lightweight and portable, it is also FAA-approved for use on airlines.
